Exported Water Well Geological Drilling Rig Machine for Siting Investigation
Product Feature:
1.Hydraulic driven, smooth transmission, low noise, compacted control panel, easy to operate, labor-saving, safe and reliable.
2.Crawler chassis mounted, convenient and fast to move and position.
3.Main arm can move up and down, drilling tower slides on sliding frame, stable, safe and reliable.
4.Sliding frame can swing back and forth on the main arm seat, achieving drilling in angles, Besides, a meter is equipped on the sliding frame, showing drilling angles conveniently.
5.Moving of power head is driven by cylinder chain multi speed system with dual chain balance structure.
6.Multifunctional power head has features of sliding clearance compensation and adjustment compensation and stepless speed adjustment large torque slow speed
7.Power head has wide speed range, which can meet the requirement of various formation and different drilling process.
Main Parameter:
| Basic Parameters |
| Drilling depth | 150m |
| Drilling diameter | 300mm |
| Drill pipe diameter | 42mm |
| Gross weight of drilling machine(engine not included) | 500kg |
| Dimension (length ×width × height) | 2050 × 1180 × 1420 mm |
| Revolving Plate |
| Rotate speed | 60 200 400 610 1100 r/min |
| Maximum torque | 1800N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 20,000N |
| Maximum Cylinder lifting force | 30,000N |
| Lifter |
| Lifting capacity | 24,000N |
| Bobbin line speed (2 layers) | 0.20 0.72 1.26 2.8 m/s |
| Bobbin diameter | 140mm |
| Rope diameter | 11mm |
| Rope capacity | 26m |
| Drilling rig |
| Type | Steel pipe quadripod |
| Height | 6m |
| Drive motor |
| Type | Changzhou ZS1100 diesel engine |
| Rated power | 11.03KW |
| Tare weighr | 150kg |
Product Tags:
|
|

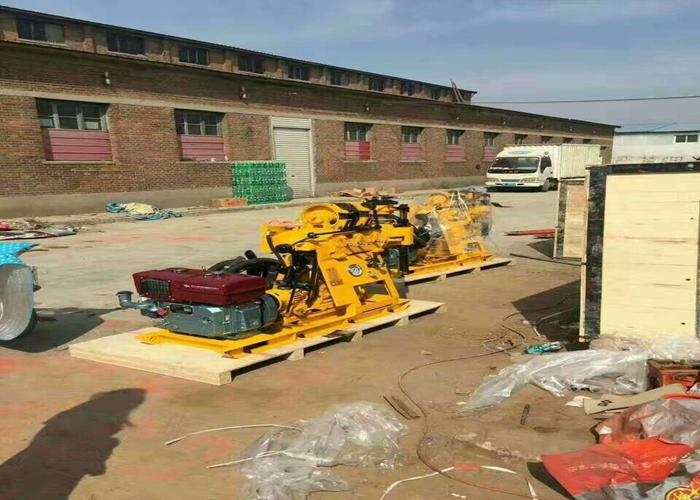

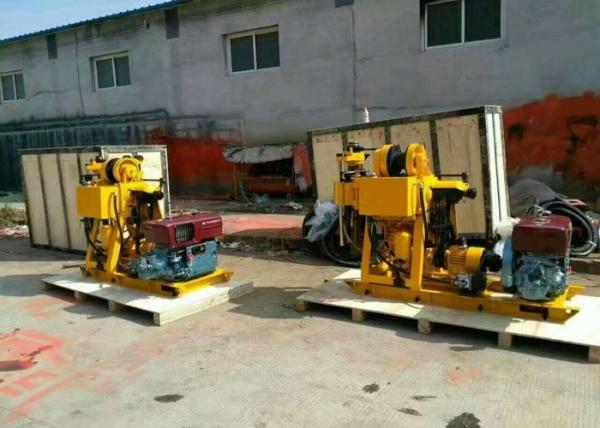

Water Well Geological Drilling Rig Machine for Siting Investigation Images
|
